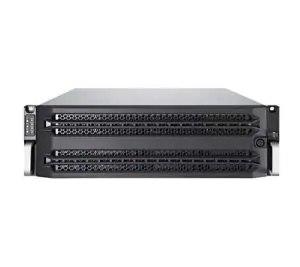

DS-A81016S
Hybrid SAN
- Economical and Stable Hardware Platform.
- Modular and no-cable design and SBB 2.0 structure.
- HDD Detection and Repair/RAID Optimization.
- Detection before operation.
- RAID 0, 1, 3, 5, 6, 10, 50, and VRAID.
- Capability of cascading up to two storage enclosures behind a single SAS port.
| Model | ||
|---|---|---|
| Model: | DS-A81016S | |
| Performance | ||
|---|---|---|
| Direct Streaming Mode:video(2Mpbs)+Picture: | 320-ch recording + playback | |
| IPSAN: | 180-ch recording + playback | |
| Controller | ||
|---|---|---|
| Processor: | One-controller (64-bit multi-core processor) | |
| Cache: | 4 GB ( extendable to 32 GB ) | |
| HDD | ||
|---|---|---|
| HDD Slot: | 16 | |
| Interface/Capacity: | SATA/1TB,2TB,3TB,4TB,6TB,8TB,10TB | |
| Hot-swapping: | Supported | |
| RAID: | RAID0,1,3,5,6,10,50.VRAID,JBOD,Hot-spare | |
| Interfaces | ||
|---|---|---|
| Alarm interface: | 1 | |
| Data network interface: | 3, 1000M Ethernet interface | |
| Management network interface: | 1, 1000M Ethernet interface | |
| MiniSAS interface: | Supported | |
| COM: | 1 | |
| USB3.0: | 2 | |
| VAG: | None | |
| HDMI: | 2 | |
| Network | ||
|---|---|---|
| Protocol: | iSCSI,RTSP,ONVIF,PSIA | |
| General | ||
|---|---|---|
| Power supply: | Gold-metal redundant power supply | |
| Comsumption ( with HDDS ): | Working: ≤308W ( 967BTU with 16 HDDs) Rated: ≤550W |
|
| Environment Temperature: | Working: +5°C to +40°C Storing：-20°C to +70°C |
|
| Environment humidity: | Working: 20% to 80%RH (non-condensing/frozen) Storing:5% to 90%RH (non-condensing/frozen) |
|
| Chassis: | 3U (19-inch height) | |
| Dimensions (W x H x D): | 440 x 132 x 495 mm (17.3 x 5.2 x 19.5 in) | |
| Weight (without HDDs): | ≤ 20 Kg (44.1 lb) | |
