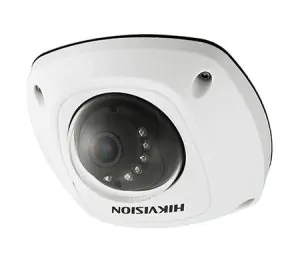

AE-VC211T-IRS
Products
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1964 (H) × 1116 (V) | |
| Min. Illumination: | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6 mm (2.8 mm, and 6 mm are selectable) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: -30°to 30°, Tilt:0°to 75°, Rotate: -180°to 180° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120dB | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| Synchronization: | Internal Synchronization | |
| Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
| S/N Ratio: | More than 62 dB | |
| BLC: | Support | |
| Up the Coax: | Support | |
| Menu | ||
|---|---|---|
| D/N Mode: | Color/BW/SMART | |
| White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English/Chinese | |
| Function: | Brightness, Contrast, Saturation, Sharpness, Digital noise reduction, Mirror | |
| Interface | ||
|---|---|---|
| Audio In: | Built-in Microphone | |
| Audio Out: | 1-ch, Aviation Port (Linear Level, 1KΩ) | |
| Video Out: | 1-ch, Aviation Port | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4 W | |
| Impact Protection: | IK7 | |
| IR Range: | Approx 10 to 20 meters | |
| Dimension: | 97 mm × 99.5 mm × 46.6 mm (3.82″ × 3.92″ × 1.83″) | |
| Weight: | Approx. 300 g (0.66 lb.) | |
