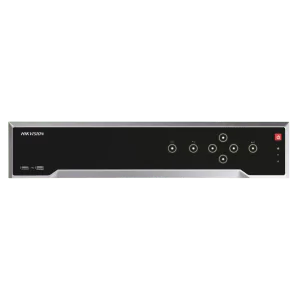

Hikvision DS-7716NI-I4(B)
- Up to 16 channel IP cameras can be connected.
- Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity.
- Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output.
- 4 HDDs for continuous video recording.
Video And Audio
- IP Video Input16-ch Up to 12 MP resolution
- HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Incoming Bandwidth160 Mbps 256 Mbps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability16-ch@1080p
- Synchronous Playback16-ch
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Network
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Remote Connection128
- Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- PoE
- Interface N/A
RAID
- RAID Type No
Auxiliary Interface
- SATA4 SATA interfaces for 4HDDs
- CapacityUp to 8TB capacity for each HDD
- Serial Interface1 RS-485 (half-duplex), 1 RS-232
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
General
- Power Supply100 to 240 VAC
- Consumption≤20 W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10 to 90 %
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
- Weight≤ 5 kg (11 lb)
