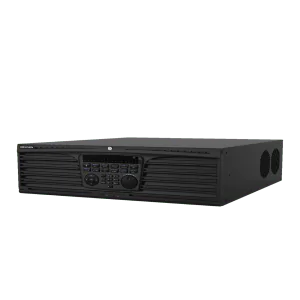

Hikvision DS-9632NI-I16

Video And Audio

• IP Video Input32-ch
• HDMI 1 OutputVGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output HDMI,VGA
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Incoming Bandwidth320 Mbps or 200 Mbps (when RAID is enabled),256 Mbps, or 200 Mbps (when RAID is enabled)
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265+,H.265,H.264+,H.264
• Decoding Capability16-ch @ 1080p
• Synchronous Playback16-ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

Network

• Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface N/A

RAID

• RAID Type Yes

Auxiliary Interface

• SATA16 SATA interfaces
• ESATA1 eSATA interface
• CapacityUp to 10TB capacity for each HDD
• Serial InterfaceRS-232; RS-485; Keyboard
• USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/8

General

• Power Supply100 to 240 VAC, 50 to 60 Hz 300 W
• Consumption≤ 45 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Chassis3U
• Dimension (W × D × H)445 × 496 × 146 mm (17.5″ × 19.5″ × 5.7″)
• Weight≤ 12.5 kg (27.6 lb)
