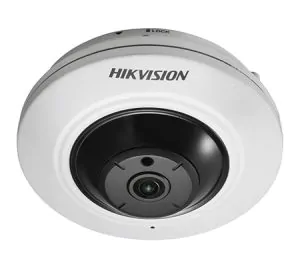

DS-2CD2955FWD-I(S)
5 MP Network Fisheye Camera
• Up to 5 megapixel high resolution
• 2560 × 1920 @30fps
• H.265, H.265+, H.264+, H.264
• Support 14 display modes
• FOV: horizontal FOV 180°, vertical FOV 180°
• Dual video streams
• DC12V & PoE (802.3af)
• Digital Noise Reduction
• Support on-board storage, up to 128 GB
• Up to 8m IR range
• -S: Audio/Alarm IO
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.5″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180° | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2560×1920 | |
| Frame Rate: | 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960) |
|
| Sub Stream: | 50Hz: 25fps (352× 288, 704 × 576) 60Hz: 30fps (352 × 240, 704 × 576) |
|
| Image Enhancement: | WDR/3D DNR/Backlight Compensation/Defog | |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser | |
| Distortion Correction: | Support | |
| BLC: | Support | |
| ROI: | Support 1 fixed region for each stream | |
| Day/Night Switch: | Auto/Scheduled | |
| Network | ||
|---|---|---|
| Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | With –S model: 1 input (line in), 1 output | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | with -S model：1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Smart Feature-set | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| General | ||
|---|---|---|
| Operating Conditions: | -10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing) | |
| Power Consumption: | 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W |
|
| IR Range: | Up to 8m | |
| Dimensions: | Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″) | |
| Weight: | 600 g (1.32 lbs.) | |
